summary

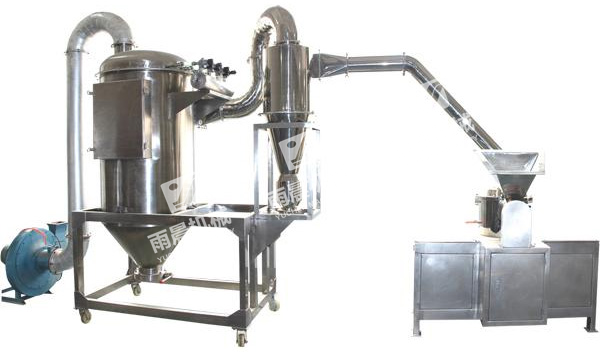

This machine consists of three parts: the main engine, auxiliary engine, and electric control box.Widely applicable for material crushing in industries such as pharmaceuticals, chemicals, and food, this machine has now reached the international advanced level.
Principles and characteristics
The material is fed into the crushing chamber through a hopper and a screw conveyor, where it is sheared and crushed by high-speed rotating blades. The material is then transported into a cyclone separator using negative pressure air transport, and discharged by a bag filter. The dust is filtered and recovered through a bag filter in a vacuum box, resulting in no dust flying during the production process and improving material utilization while reducing enterprise costs.
Main technical parameters
model
throughput
Feed particle size
Discharge fineness
Total power
Main speed
External dimensions
weight
WFJ-15
10-200
≤10
80-320
13.5
~6000
4200x1200x2700
1000
WFJ-20
50-600
≤10
80-320
18.9
~5000
5300x1200x3000
1250
